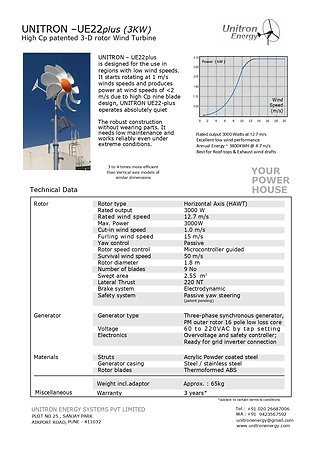

Technical Data
| Rotor | |
| Rotor type | Horizontal Axis (HAWT) |
| Rated output | 3000 W |
| Rated wind speed | 12.7 m/s |
| Max. Power | 3000W |
| Cut-in wind speed | 1.0 m/s |
| Furling wind speed | 15 m/s |
| Yaw control | Passive |
| Rotor speed control | Microcontroller guided |
| Survival wind speed | 50 m/s |
| Rotor diameter | 1.8 m |
| Number of blades | 9 No |
| Swept area | 2.55 square meters |
| Lateral Thrust | 220 NT |
| Brake system | Electrodynamic |
| Safety system | Passive yaw steering |
| Generator | |
| Generator type | Three-phase synchronous generator, PM outer rotor 16 pole low loss core |
| Voltage | 60 to 220 VAC by tap setting |
| Electronics | Overvoltage and safety controller; Ready for grid inverter connection |
| Materials | |
| Struts | Acrylic Powder coated steel |
| Generator casing | Steel / stainless steel |
| Rotor blades | Thermoformed ABS |
| Miscellaneous | |
| Weight incl. adaptor | Approx. : 65kg |
| Warranty | 3 years*
(*subject to certain terms & conditions) |

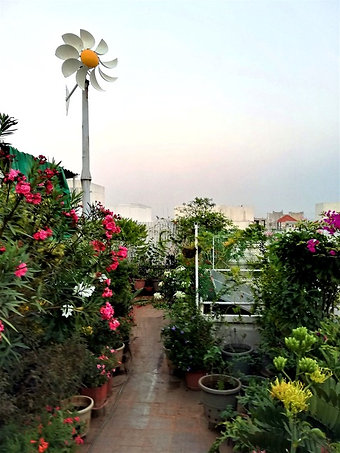

The UE22+ small wind turbine is designed for use in regions with low wind speeds. It starts rotating at 1 m/s wind speed and starts producing power at a wind speed of 2 m/s. The robust construction without wearing parts makes this product low maintenance and it works reliably even under extreme weather conditions.
Key features:
- Six times more powerful than vertical axis models of same dimensions
- Three times more efficient than horizontal axis of same dia , this model sports just 1.8M rotor.
- Absolutely noiseless operation.

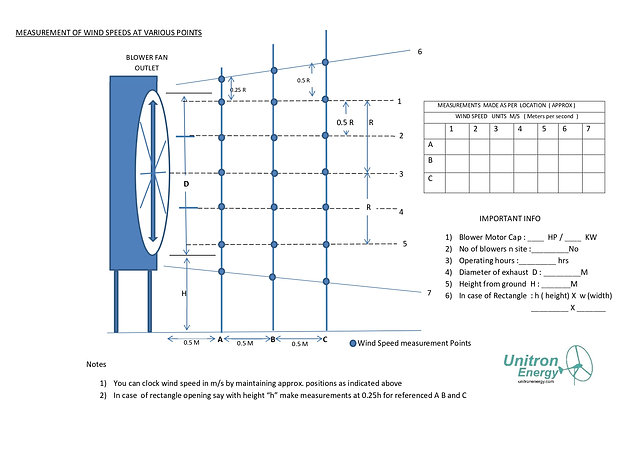

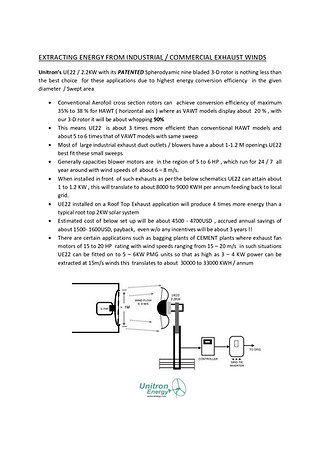

- Best for extracting energy from Exhaust / waste winds from commercial roof top exhausts / industrial exhausts. Typically 10 to 15 hp blowers continuously spew out winds at 8 – 15 m/s 24 /7. About 1.5 to 2.5 KW can be fed back to grid using UE22plus 3D. Energy savings achievable to the tune of 8000 to 9000 KWH per annum under these conditions.
Buying options are:
1) Turbine with Contol Panel and dump load only.
2) 1 + 6/12/18 Mtr. Triple Lattice Tower for Mounting.
3) 1 or 2 + Inverter + Battery Bank.
