Technical Specifications:

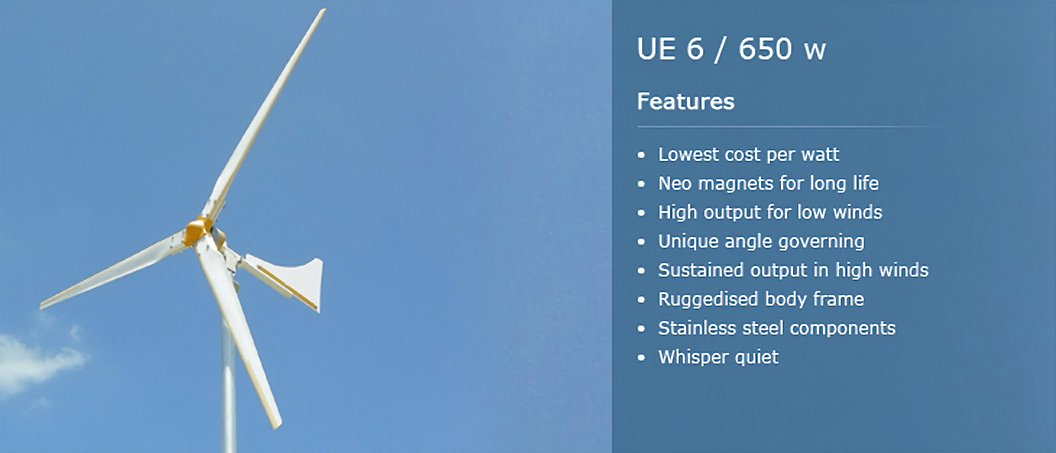

Model UE-6 / 650 w:

• @ Rated wind speed m/s mph: 10.5/25
• Diameter m/ft:  2.2/7.2
• Swept area  sqm/sqft: 3.7/4.3
• Number of blades: 3
• Blade Material:  Carbon Fibre reinforced
• Rated Power: 550W
• @ wind Speeds  m/s  mph:  10/22
• Peak Power @ 12.5 m/s:  750W
• Cut-in Wind m/s  mph:  2.7/6
• Generator     Poles / RPM:  10/600

—–Mechanical———

• Prop Tip to Center cm/in:  28/11
• Min.Tip Clearance cm/in:  20/8
• Max Tower Diam at Tip cm/in:  6/2.5
• Mounting Pipe/Tube (5) :  P 2.5″scd 40
• Tower Top Weight:  32 kg
• Lateral Thrust:  650 nts

Model UE-15 / 1.5 kw:

• @ Rated wind speed m/s mph: 10.5/24
• Diameter m/ft: 3.2/11
• Swept area sqm/sqft: 9.2/95
• Number of blades: 3
• Blade Material: Carbon Fibre reinforced
• Rated Power: 1350W
• @ wind Speeds m/s mph: 10/22
• Peak Power @ 12.5 m/s: 1700W
• Cut-in Wind m/s mph: 2.7/6
• Generator Poles / RPM: 16/375

—–Mechanical———

• Prop Tip to Center cm/in: 35/14
• Min.Tip Clearance cm/in: 28/11
• Max Tower Diam at Tip cm/in: 6/2.5
• Mounting Pipe/Tube (5): P 2.5″scd 40
• Tower Top Weight: 34 kg
• Lateral Thrust: 1200 nts

Model UE-15plus / 1.8 kw:

• @ Rated wind speed m/s mph: 10.5/24
• Diameter m/ft: 3.40/11.30
• Swept area sqm/sqft: 9.40/100
• Number of blades: 3
• Blade Material: Carbon Fibre reinforced
• Rated Power: 1630W
• @ wind Speeds m/s mph: 10/22
• Peak Power @ 12.5 m/s: 2200W
• Cut-in Wind m/s mph: 2.7/6
• Generator Poles / RPM: 16/375

—–Mechanical———

• Prop Tip to Center cm/in: 35/14
• Min.Tip Clearance cm/in: 28/11
• Max Tower Diam at Tip cm/in: 6/2.5
• Mounting Pipe/Tube (5): P 5″scd 40
• Tower Top Weight: 39 kg
• Lateral Thrust: 1260 nts

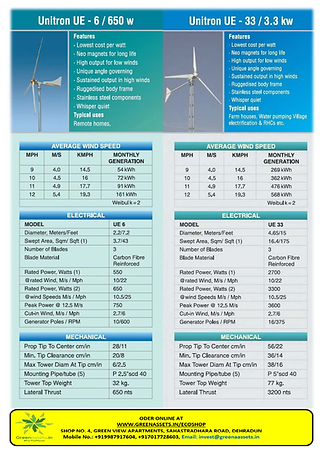

Model UE-33 / 3.3 kw:

• @ Rated wind speed m/s mph: 10.5/25
• Diameter m/ft: 4.65/15
• Swept area sqm/sqft: 16.4/175
• Number of blades: 3
• Blade Material: Carbon Fibre reinforced
• Rated Power: 2700W
• @ wind Speeds m/s mph: 10/22
• Peak Power @ 12.5 m/s: 3600W
• Cut-in Wind m/s mph: 2.7/6
• Generator Poles / RPM: 16/375

—–Mechanical———

• Prop Tip to Center cm/in: 56/22
• Min.Tip Clearance cm/in: 36/14
• Max Tower Diam at Tip cm/in: 38/16
• Mounting Pipe/Tube (5): P 5″scd 40
• Tower Top Weight: 77 kg
• Lateral Thrust: 3200 nts

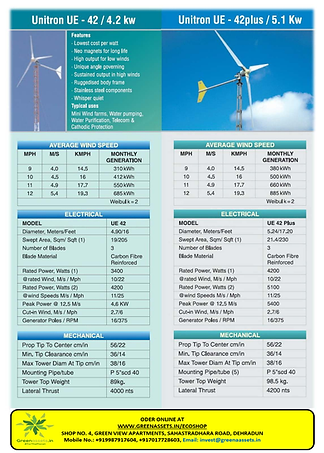

Model UE-42 / 4.2 kw:

• @ Rated wind speed m/s mph: 11/25
• Diameter m/ft: 4.90/16
• Swept area sqm/sqft: 19/205
• Number of blades: 3
• Blade Material: Carbon Fibre reinforced
• Rated Power: 3400W
• @ wind Speeds m/s mph: 10/22
• Peak Power @ 12.5 m/s: 4600W
• Cut-in Wind m/s mph: 2.7/6
• Generator Poles / RPM: 16/375

—–Mechanical———

• Prop Tip to Center cm/in: 56/22
• Min.Tip Clearance cm/in: 36/14
• Max Tower Diam at Tip cm/in: 38/16
• Mounting Pipe/Tube (5): P 5″scd 40
• Tower Top Weight: 89 kg
• Lateral Thrust: 4000 nts

Model UE-42plus / 5.1 kw:

• @ Rated wind speed m/s mph: 11/25
• Diameter m/ft: 5.24/17.20
• Swept area sqm/sqft: 21.4/230
• Number of blades: 3
• Blade Material: Carbon Fibre reinforced
• Rated Power: 4200W
• @ wind Speeds m/s mph: 10/22
• Peak Power @ 12.5 m/s: 5400W
• Cut-in Wind m/s mph: 2.7/6
• Generator Poles / RPM: 16/375

—–Mechanical———

• Prop Tip to Center cm/in: 56/22
• Min.Tip Clearance cm/in: 36/14
• Max Tower Diam at Tip cm/in: 38/16
• Mounting Pipe/Tube (5): P 5″scd 40
• Tower Top Weight: 98.5 kg
• Lateral Thrust: 4200 nts

Wind energy is environmentally clean, quiet and attractive source of electrical energy. Our cutting edge carbon fibre small wind turbines are optimized to work in low wind speed regions and have the highiest performance parameters compared to other global manufactures for wind speeds up to 15m/sec. Our partner Unitron has more than 12 year of experience delivering small wind turbines across the world including Australia, Africa, South East Asia, Europe and USA.

SALIENT FEATURES

• Light Weight Carbon Fibre blades
• Extremely durable magnets and high grade stainless steel components
• Low Cut in wind of 2.7m/s
• Lowest cost per watt
• Sustained output in high winds
• Ruggedised body frame
• Whisper quiet
